What Is a 24V Power Adapter Complete Guide to Specs and Uses
Views : 59
Update time : 2025-11-21 17:00:50
If you’ve ever wondered what a 24V power adapter is and why it matters, you’re in the right place. Unlike your typical 5V phone charger or a 12V car adapter, a 24-volt adapter plays a crucial role in powering everything from LED strip lights to industrial motors. But is it AC or DC? Which devices actually need 24 volts? And what should you look for to pick the right one without frying your gear?
In this quick guide, we’ll break down the essentials of 24V power adapters, help you spot the differences, and show you why getting it right is non-negotiable. Ready to power up your knowledge? Let’s dive in!
What Exactly Is a 24V Power Adapter?
A 24V power adapter is a device that converts standard AC electricity from a wall outlet into a stable 24-volt DC power source for running electronics and equipment. Unlike the common 5V phone chargers you use daily or the 12V adapters popular in cars, a 24V adapter delivers a higher voltage that suits more demanding devices. This 24 volts level is especially popular in industrial setups, commercial lighting, and some consumer gadgets because it offers the perfect balance—enough power to drive motors, LEDs, and control systems without being too bulky or unsafe for everyday use.
AC vs DC: Is a 24V Power Adapter AC or DC?
Most modern 24V power adapters you’ll find today deliver 24V DC (direct current). In fact, about 99% of these adapters are DC, providing a stable, regulated output that’s perfect for sensitive electronics. These adapters take the incoming AC from your wall and convert it to a smooth 24V DC supply through rectification and regulation inside the unit.
However, 24V AC (alternating current) options do exist, though they’re less common. You’ll typically see them in certain applications like Power over Ethernet (PoE) devices, some HVAC systems, traditional doorbells, or older pellet stove controllers that use a Pellon transformer. These systems rely on AC for their operation, so a matching 24V AC power supply is necessary.
To figure out what type of 24V adapter your device needs, check the label on the adapter or in the device’s manual. Look for markings like “24V DC” or “24V AC.” If it’s not clear, you can measure with a multimeter or check the manufacturer’s specifications online. Using the wrong type (AC instead of DC or vice versa) could lead to device malfunction or damage.
For a wide selection of reliable 24V DC power adapters, you can consider trusted options such as the 24V 10A 240W AC/DC power adapter designed for stable and regulated output.
Common Applications & Devices That Use 24V Power
24V power adapters are widely used across various industries and everyday devices due to their reliable voltage level and efficiency. Here are some of the most common applications:
-
LED Strip Lighting & Signage: Many commercial and residential LED setups use 24V power supplies for brighter, longer runs without voltage drop.
-
Pellet Stoves & Boilers: These heating devices rely on stable 24V adapters to run control circuits and fans.
-
Security Cameras (CCTV) & Access Control Systems: 24V DC is a popular choice for powering surveillance systems and door entry panels.
-
Industrial PLCs, Motors, and Actuators: Automation equipment frequently uses 24V DC for control logic and low-voltage motors.
-
3D Printers & CNC Machines: Precise voltage supply at 24 volts is crucial for stepper motors and controllers.
-
Electric Scooters & Some E-Bike Chargers: Many electric personal transport devices charge or operate at 24V levels.
-
Audio Equipment: Mixers and amplifiers, especially in professional or installation settings, may use 24V power adapters.
-
Spa Pumps, Aquarium Heaters, and Other Specialty Equipment: Devices requiring consistent and safe low-voltage power often run off 24V supplies.
If you're looking for more guidance on specific power adapter uses or need to match your device with the right 24V power supply, check out detailed resources on common power adapter applications.

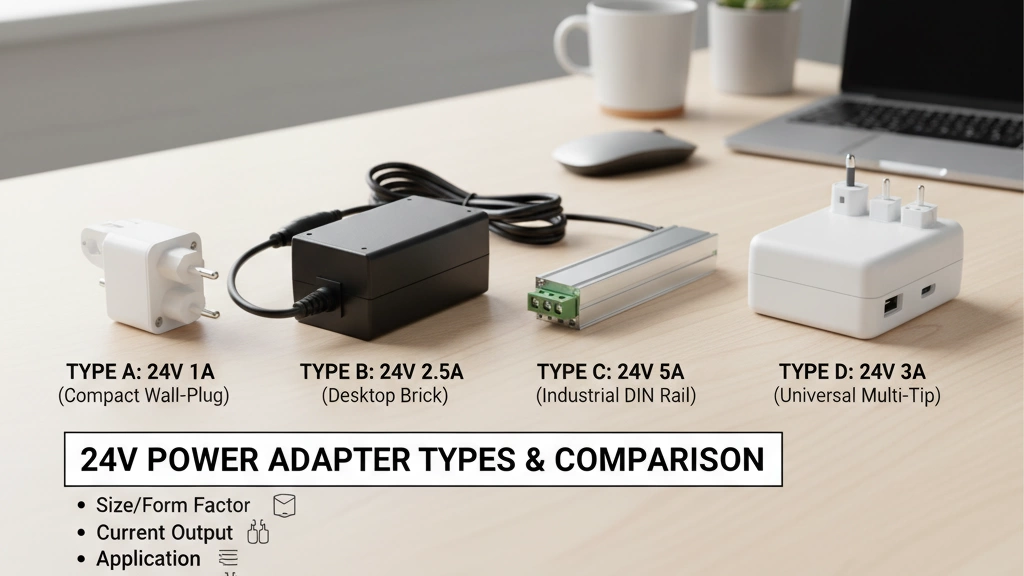

Types of 24V Power Adapters
When picking a 24V power adapter, you’ll find several common types designed for different uses:
-
Wall-mount (plug-in) adapters: These plug directly into a standard outlet and are compact for home or office use. They’re great for simple setups like LED strip lighting or small appliances.
-
Desktop adapters (external brick with cable): Also called “wall bricks,” these sit on a desk or floor and connect to your device via a cable. They offer higher power options and better cooling for devices like security cameras or audio gear.
-
Open-frame / DIN-rail power supplies: Typically used in industrial settings, these are meant to install inside control panels. Their open frame design or DIN-rail mount keeps them cool and close to machinery like PLCs or motors.
-
Waterproof IP67 outdoor adapters: Built to withstand harsh weather, these rugged adapters are ideal for outdoor signage, garden lighting, or any outside 24V applications where moisture resistance is a must.
Switching vs Linear 24V Power Supplies
Feature |
Switching Power Supply |
Linear Power Supply |
|---|---|---|
Efficiency |
High (80-90%) |
Lower (50-60%) |
Size and Weight |
Compact and lightweight |
Bulky and heavier |
Heat Generation |
Less heat, often no fan needed |
More heat, usually needs a heatsink |
Noise |
Can emit high-frequency electrical noise |
Quiet operation |
Cost |
More affordable and common |
Usually more expensive |
Application |
Most general uses |
Sensitive audio or analog equipment |
Switching 24V adapters are the go-to for most modern devices because they are efficient and smaller. However, if you need ultra-clean power with minimal electrical noise—like for certain audio equipment—a linear power supply might be better despite its size and heat.
For a wide range of reliable 24V options, including switching power supplies, check out trusted manufacturers like YHYadapter, known for quality and certifications.
Key Specifications You Must Check Before Buying a 24V Power Adapter
When picking a 24V power adapter, make sure to check these key specs to ensure it fits your device perfectly:
Specification |
What to Look For |
Notes |
|---|---|---|
Output Voltage Tolerance |
Typically ±5% |
Keeps voltage stable around 24V |
Current Rating (Amps) |
Common ratings: 1A, 2A, 3A, 5A, 10A+ |
Choose equal or higher than device needs |
Wattage (Watts) |
Volts × Amps = Watts |
Must meet or exceed your device’s power draw |
Connector Type |
Usually 5.5×2.5mm barrel plug |
Also 5.5×2.1mm, 3-pin XLR, terminal blocks |
Polarity |
Center positive or center negative |
Match polarity exactly (see diagram below) |
Input Voltage |
Universal 100-240V AC |
For worldwide use without extra adapters |
Safety Certifications |
UL, CE, FCC, RoHS |
Ensures safety and compliance |
Polarity Diagram (Center Positive vs Center Negative)
(+) -------◯------- (-) Center Positive: + at the center pin; - on the outer barrel Center Negative: - at the center pin; + on the outer barrel
Paying attention to these specs keeps your setup safe and your device working smoothly. For reliable options, consider checking high-quality units like the 24V DC 6A Switching Power Supply that meet these standards.
Can You Use a Higher or Lower Voltage Adapter?
When it comes to 24V devices, using the exact voltage—24 volts—is crucial. Most 24V power supplies are designed to work within a narrow voltage range, often around ±5%. Using a higher or lower voltage adapter can cause issues, such as malfunction, damage, or shortened device lifespan.
Risks of using the wrong voltage:
-
Using a lower voltage adapter (e.g., 12V instead of 24V): The device may not power on, or it could run poorly and strain the power supply.
-
Using a higher voltage adapter (e.g., 19V laptop adapter on a 24V device): This may overheat the device, damage components, or create a safety hazard.
Sometimes, step-up (boost) or step-down (buck) voltage converters are an acceptable solution when you need to adapt a different input voltage to 24V safely. But these should be chosen carefully and only if your device allows it.
In general, always match the adapter voltage to the device specs. For more details on choosing safe power solutions, check out our common maintenance tips for power adapters.
How to Choose the Right 24V Power Adapter in 2025
Picking the right 24V power adapter isn't hard if you follow a few simple steps:
-
Match the voltage exactly: Your device needs 24 volts, no substitutes.
-
Match or exceed the amperage: Check the amperage your device requires and get an adapter with equal or higher current to avoid overload.
-
Match the connector and polarity: Make sure the plug fits and polarity (usually center positive) matches your device.
Step |
What to Check |
Why It Matters |
|---|---|---|
Voltage |
Exactly 24V |
Prevents damage or malfunction |
Current (Amps) |
Equal or higher than device needs |
Ensures stable power supply |
Connector Type & Size |
Commonly 5.5×2.5mm barrel |
Compatibility and fit |
Polarity |
Center positive or negative |
Avoids short circuits or damage |
Buying Tips for 2025
Choose well-known, reliable brands to avoid headaches. YHYadapter is a trusted OEM/ODM manufacturer known for quality and safety compliance, making their 24V desktop and wall adapters great choices for US customers. You can explore their range of 24V adapters designed for various power needs.
OEM vs Off-Brand: What to Watch Out For
-
OEM adapters like YHYadapter often have better quality control, safety certifications (UL, CE), and warranty support.
-
Off-brand adapters on Amazon or eBay might look cheaper but risk inconsistent voltage, poor components, or lack certifications. This could damage your equipment or be unsafe.
