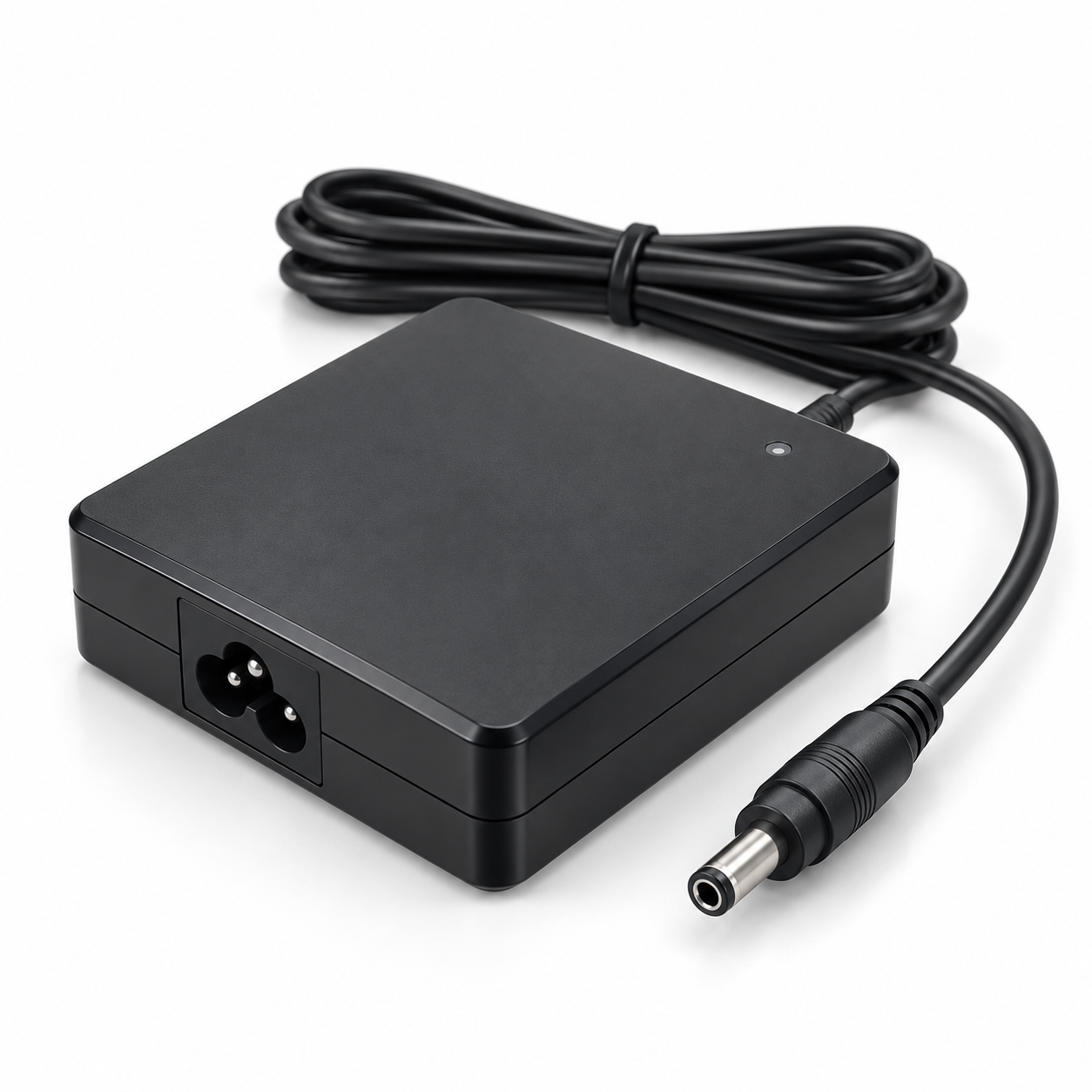

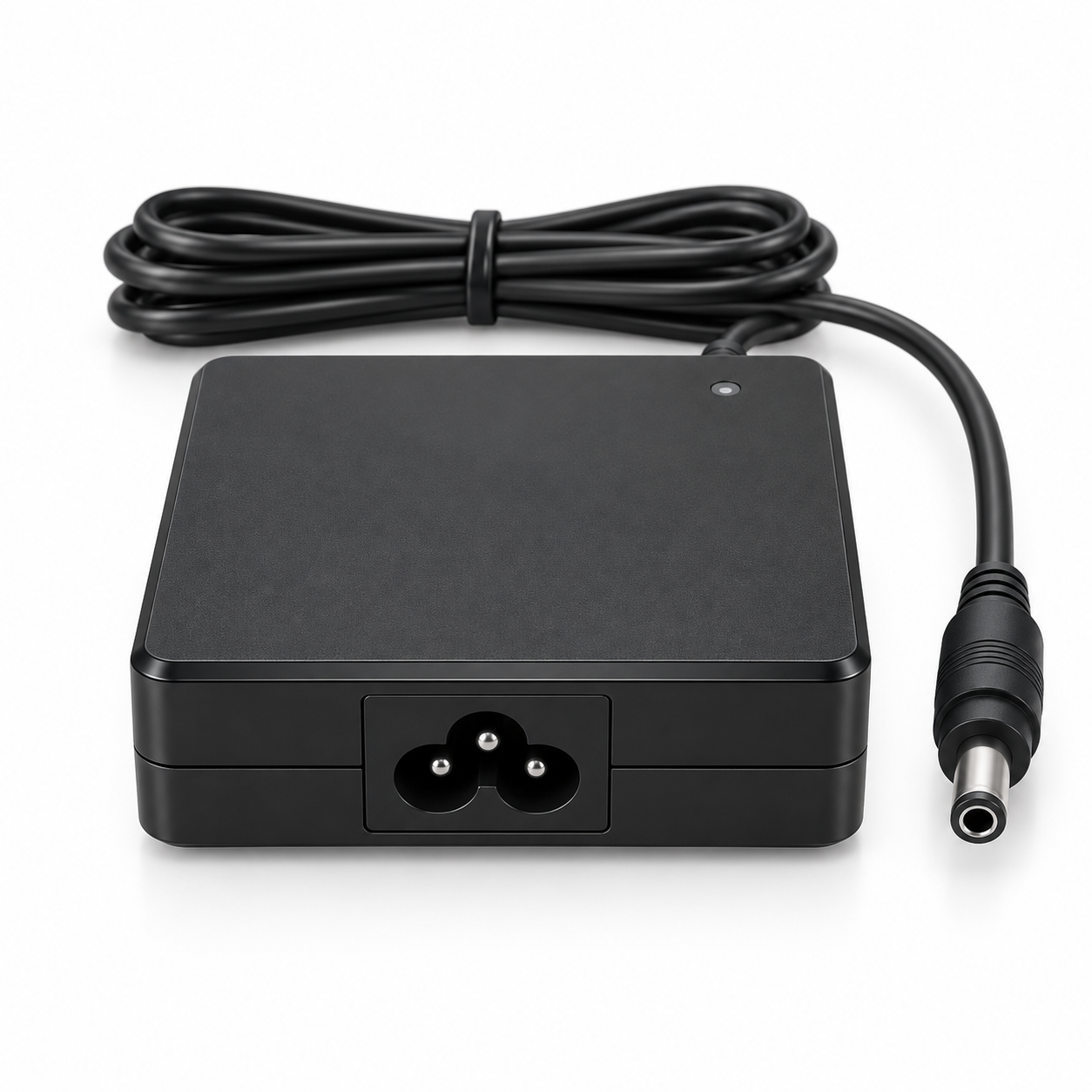

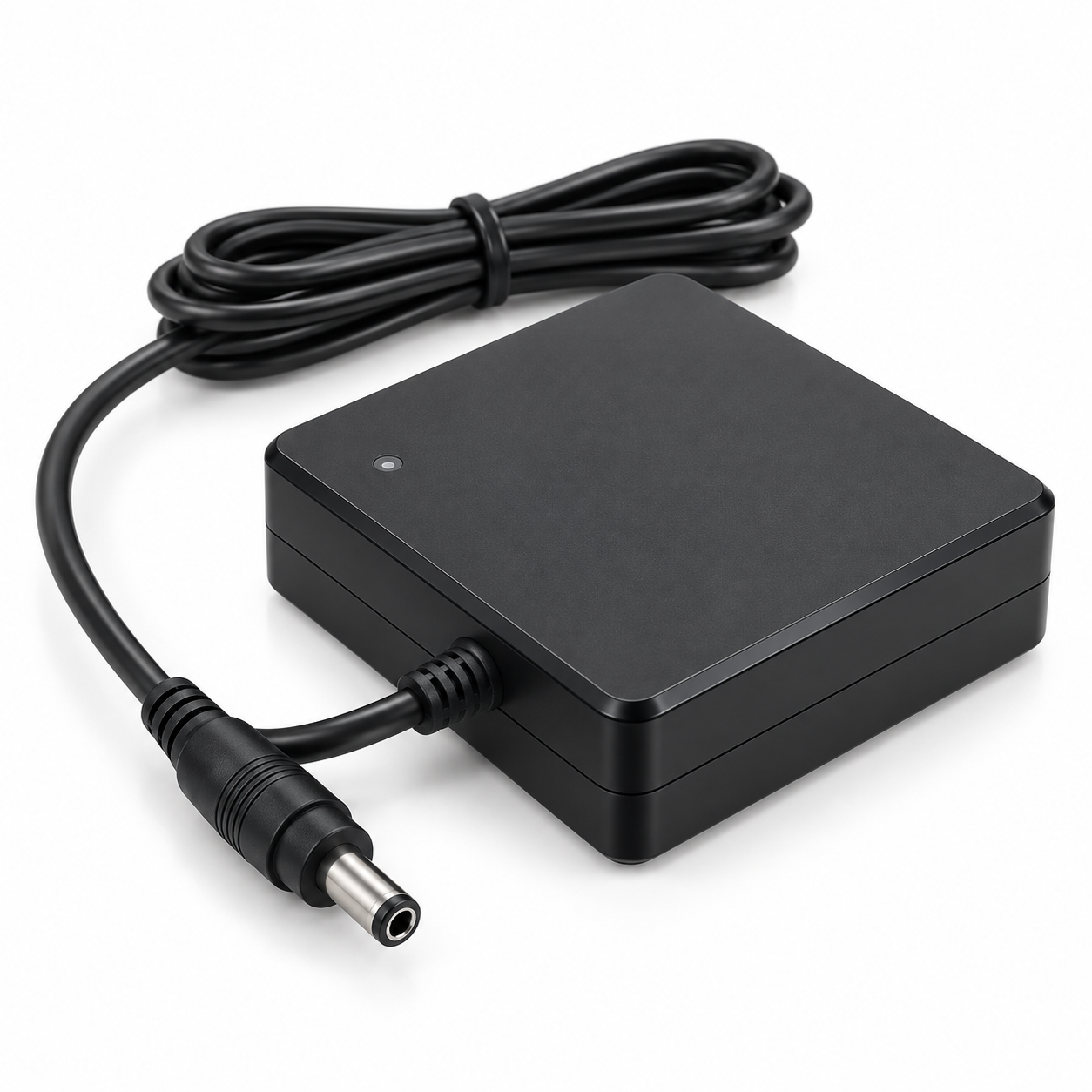

120W 12V 10A Ultra-Slim GaN Power Adapter
The YHY-12010000 is a compact 12V 10A 120W GaN power adapter designed for applications that require high current in a slim and lightweight desktop power supply.
Using a GaN power solution, this series combines high power density with an attractive ultra-slim square housing, making it ideal for modern equipment where installation space and appearance are important.
Key Advantages
- GaN Power Solution
High power density in a compact and lightweight design.
- Ultra-Slim Square Housing
Modern appearance with a slim profile for space-sensitive equipment.
- 12V 10A High-Current Output
Delivers up to 120W for demanding 12V electronic equipment.
- Flexible AC Input Options
Available with IEC C8 2-pin or IEC C6 3-pin cloverleaf AC inlet.
- Desktop or Wall-Plug Configuration
With an optional compatible C7/C5-to-wall-plug conversion plug, the adapter can also be configured for direct wall-plug use.
- Global Compliance Support
CB, CE and FCC compliance. Designed and tested according to IEC 62368-1.
- OEM / ODM Customization
DC cable length, connector, label and packaging can be customized.
Typical Applications
The 12V 10A model is suitable for:
- Network switches and routers
- Mini PCs and embedded systems
- POS terminals
- LED lighting and light boxes
- Industrial terminals
- Security and surveillance equipment
- Audio / video equipment
Main Specifications
Input: 100–240V AC, 50/60Hz
Output: 12V DC, 10A
Rated Power: 120W
Model: YHY-12010000
AC Inlet: IEC C8 or IEC C6
Power Technology: GaN
Safety Standard: IEC 62368-1
Compliance: CB / CE / FCC
Output Range of Series: 9V–36V DC
Maximum Series Current: 10A
Maximum Series Power: 150W
Compact Power for Modern Electronics
The YHY-12010000 provides a practical combination of high-current output, compact size and flexible installation, making it a strong solution for OEM and ODM projects requiring a reliable 12V power source.
