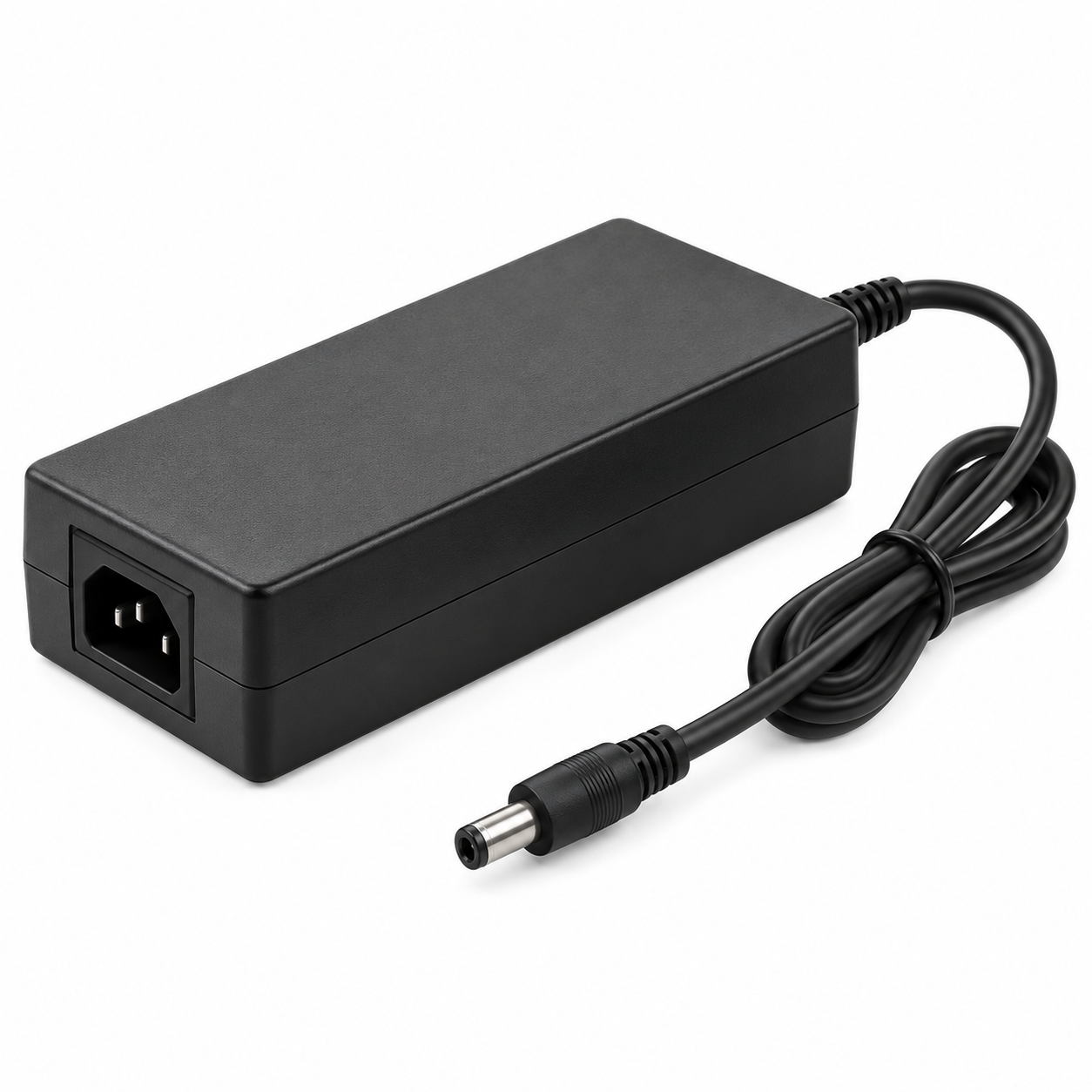

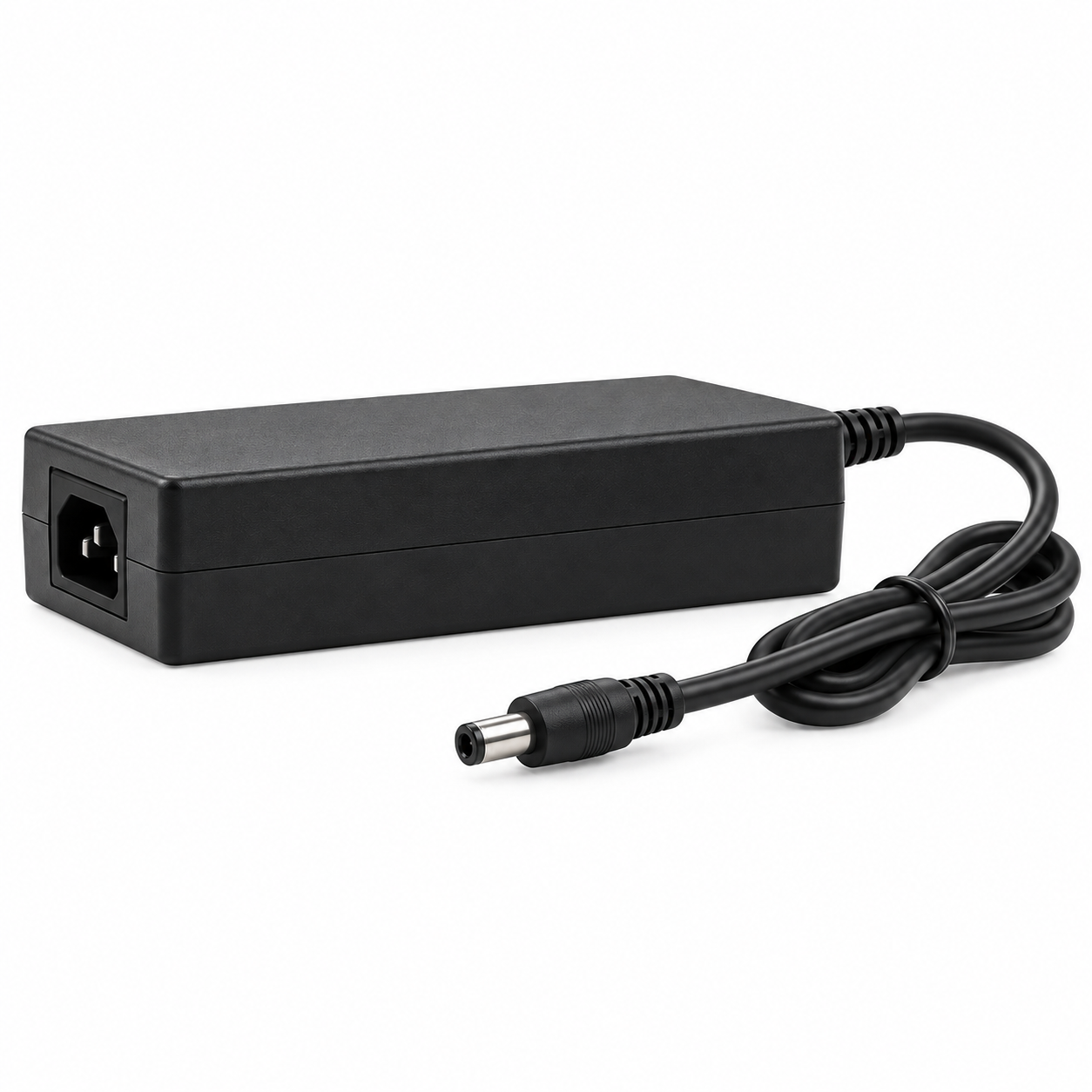

Desktop 48v 4.17a power adapter
Input:Universal 100-240Vac;50/60Hz
Output: 48v 4,17a,200W
Model number:YHY-48004170
AC Inlet: IEC 320-C6/C14
DC connector: 5.5*2.1/5.5*2.5/others
MTBF: 50000hrs
100% tested by machine
Protection: SCP，OVP，OCP，OTP
Warranty:3 years
Global Certifications: ETL FCC CE PSE RoHS etc.
The YHYadapter 200W 48V 4.17A LED Power Adapter is a high-power desktop AC/DC power supply designed for indoor LED lighting equipment and OEM/ODM lighting projects.
Featuring a standard IEC C14 AC inlet and stable 48V DC output, this adapter provides up to 200W of continuous power for LED strip lighting, commercial linear lighting, display lighting, architectural lighting, and other indoor LED systems.
ETL, CE, PSE and other certification options are available for different target markets and project requirements.
This 48V 200W desktop power adapter is especially suitable for LED lighting systems that require higher power output while maintaining lower DC-side current than equivalent 12V or 24V systems.
For OEM lighting manufacturers, the 48V platform can also help reduce cable voltage drop and simplify high-power LED system design.
The adapter provides a regulated 48V DC output at up to 4.17A, delivering a maximum rated power of approximately 200W.
Compared with lower-voltage high-current power solutions, a 48V output can reduce current through the DC cable for the same output power.
This can provide several engineering advantages for suitable LED applications:
The final cable length, wire gauge and DC connector should be selected according to the customer's actual load current and installation requirements.
The 200W series uses a desktop enclosure rather than a wall-mounted structure.
This design provides more internal space for high-power components and thermal management, making it suitable for continuous-power LED lighting applications.
Main structural features include:
The desktop structure is suitable for OEM lighting equipment where reliability, cable flexibility and international AC cord compatibility are important.

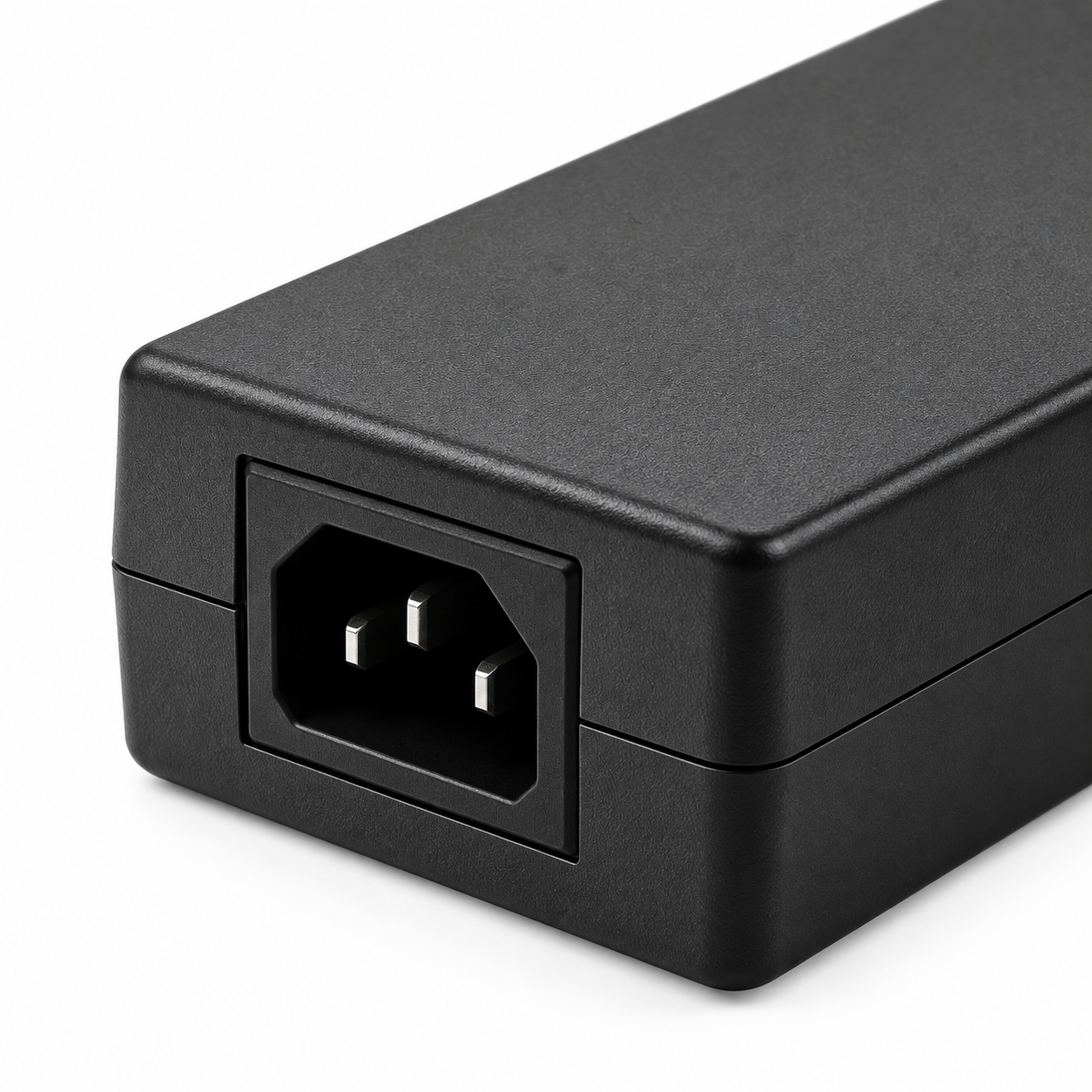

The adapter uses a standard IEC C14/C6 AC inlet, allowing different AC power cords to be selected according to the target market.
Available AC cord configurations can include:
This allows the same power adapter platform to be used for different regional projects while changing the AC power cord according to local requirements.
The 200W LED power adapter series supports certification options for different markets, including:
ETL – for North American market requirements
CE – for European market requirements
PSE – for the Japanese market
Other certification or compliance requirements can be discussed according to the model, application and target market.
Certification configuration should always be confirmed according to the final model number and project specification.
The 200W 48V LED power adapter is designed with multiple protection functions to support stable and reliable operation.
Protection options include:
These protection functions help protect both the power adapter and the connected LED lighting equipment under abnormal operating conditions.

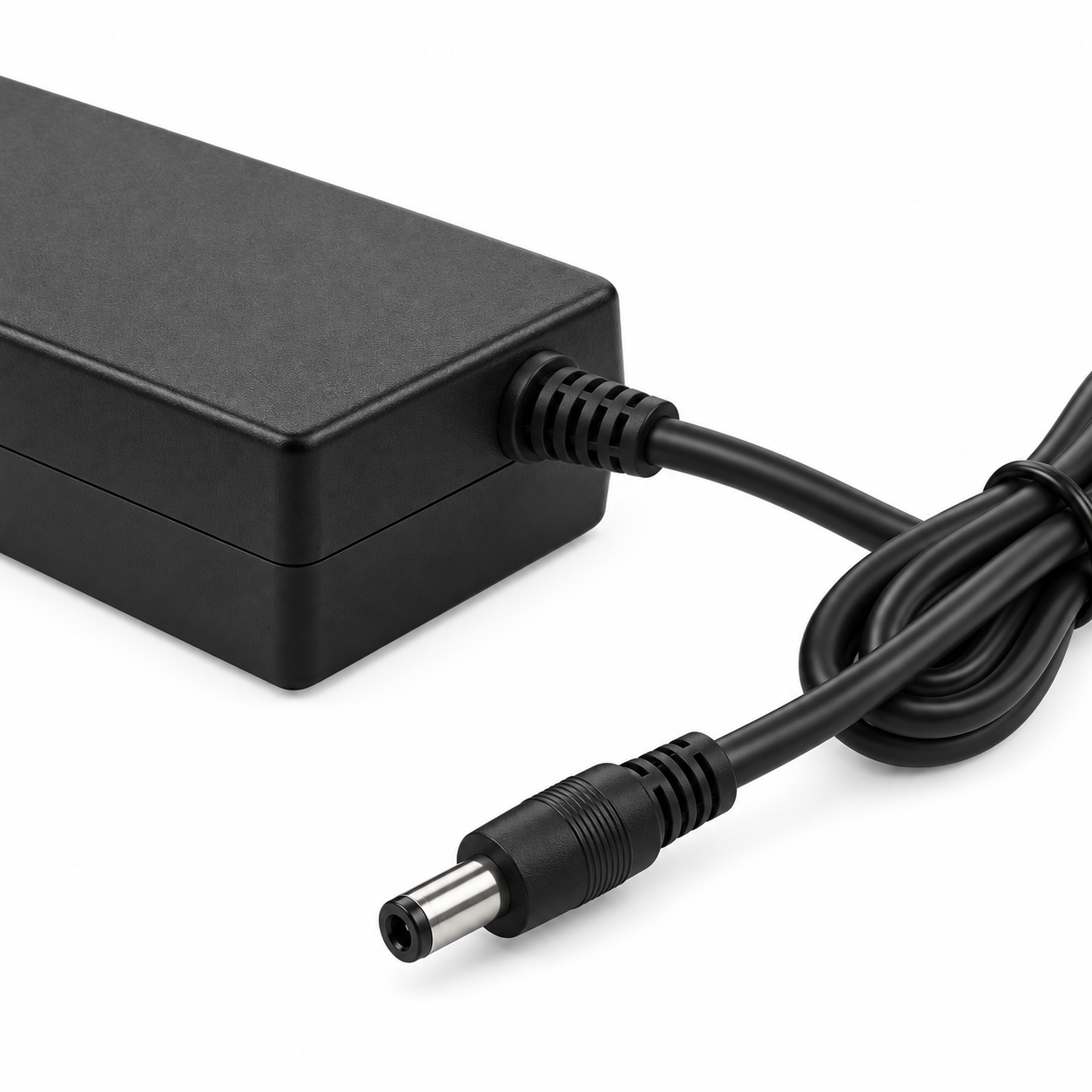

Different LED lighting projects may require different cable lengths, wire gauges and connector types.
YHYadapter supports OEM customization for the DC output side, including:
For 48V 4.17A applications, the DC connector and cable should be selected according to the actual current, voltage drop, mechanical locking requirements and installation environment.
YHYadapter provides OEM and ODM power supply support for LED lighting manufacturers and equipment integrators.
Available customization includes:
We can support customized power solutions based on your LED lighting system requirements.

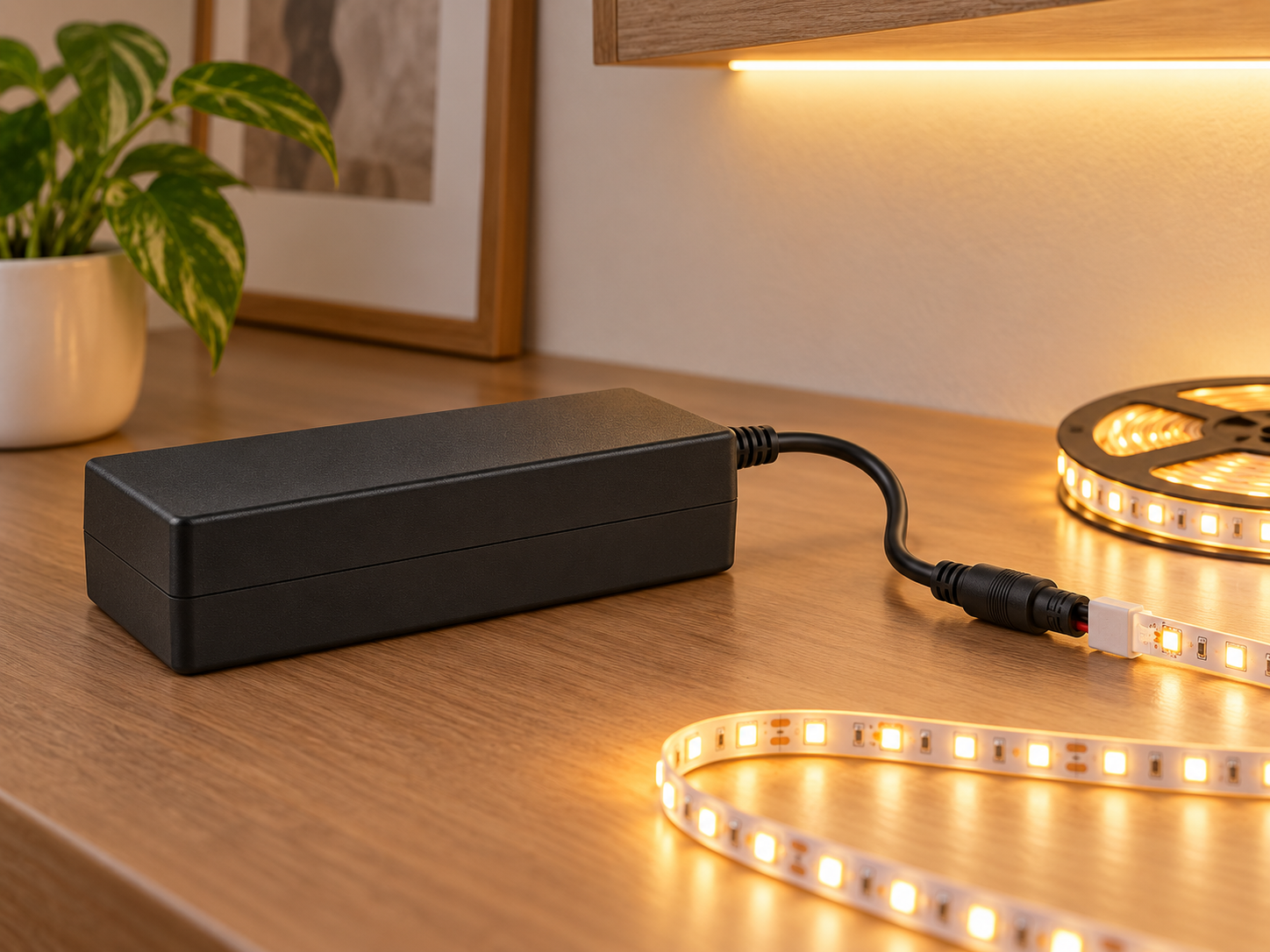

The 48V 200W power adapter can be used with high-power 48V LED strip lighting systems.
The higher DC voltage helps reduce current compared with lower-voltage systems at the same power level, making it suitable for longer LED strip installations and higher-power lighting projects.
Typical applications include:

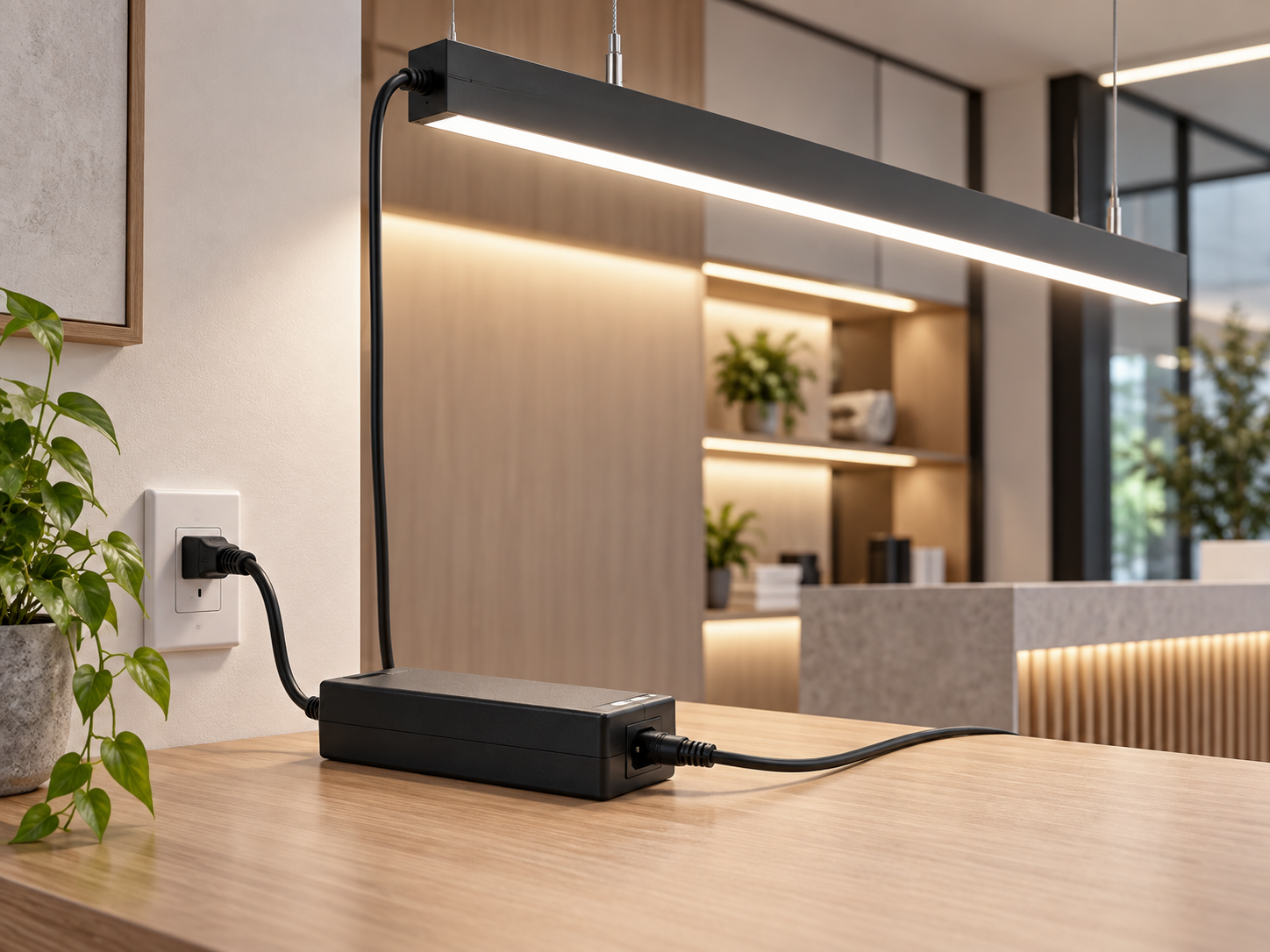

The adapter is suitable for commercial linear LED lighting systems used in:
Its 200W output makes it suitable for projects requiring a single high-power external power source.
The 48V output platform is also suitable for indoor architectural and display lighting applications such as:
The adapter is intended primarily for indoor applications and should not be positioned as an outdoor or waterproof power supply unless a separate enclosure or system design provides the required environmental protection.
Provides a regulated 48V DC output for high-power LED lighting equipment.
Designed for lighting systems requiring up to 200W output from a desktop power supply.
At the same power level, 48V systems require less current than 12V or 24V systems, helping reduce cable voltage drop and connector current loading.
Allows different regional AC power cords to be used with the same power adapter platform.
ETL, CE, PSE and other certification options can support different target markets.
OVP, OCP, OLP, SCP and OTP protection support safe and reliable system operation.
Cable, connector, label, packaging and electrical specifications can be customized according to project requirements.
| Item | Specification |
|---|---|
| Product Name | 200W 48V LED Power Adapter |
| Product Type | Desktop AC/DC Power Adapter |
| Rated Power | 200W |
| Output Voltage | 48V DC |
| Output Current | 4.17A |
| Input Voltage | 100–240V AC |
| Input Frequency | 50/60Hz |
| AC Inlet | IEC C14/C6 |
| DC Output | Fixed DC Cable |
| Protection | OVP / OCP / OLP / SCP / OTP |
| Application | Indoor LED Lighting |
| Certification | ETL / CE / PSE and other options |
| Warranty | 2 Years |
| OEM / ODM | Available |
| DC Connector | Customizable |
| Cable Length | Customizable |
| Product Label | Customizable |
| Packaging | Customizable |
Founded in 2010, YHYadapter specializes in AC/DC power adapters, battery chargers, PD chargers and customized power solutions for OEM and ODM projects.
For LED lighting applications, we provide high-power desktop power adapters with flexible output, cable and connector options.
Our 200W 48V desktop adapter is designed for lighting manufacturers looking for:
Whether you are developing LED strip lighting, commercial linear lighting, display lighting or other indoor LED systems, YHYadapter can support your project from specification confirmation to mass production.
Looking for a 200W 48V LED power adapter with a specific DC connector, cable length, product label or certification?
Contact YHYadapter with your project requirements.
Please provide:
Our team can recommend or customize a suitable power solution for your LED lighting project.
